ISO 4026 Hexagon Socket Set Screws with Flat Point
ISO 4026 Hexagon Socket Set Screws with Flat Point

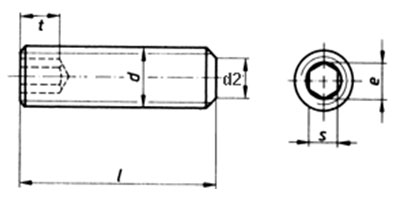

Dimensions of Hexagon Socket Set Screws with Flat Point
Dimensions
s
dp max
M 1.4
0.7
0.45
M 1.6
0.7
0.8
M 2
0.9
1
M 2.5
1.3
1.5
M 3
1.5
2
M 4
2
2.5
M 5
2.5
3.5
M 6
3
4
M 8
4
5.5
M 10
5
7
M 12
6
8.5
M 14
6
10
M 16
8
12
M 20
10
15
M 24
12
18
