UNI 5929 - Boltport Fasteners

Thread d	p	dv		df	e	s			t
Thread d	p	max	min	approx.	min	nominal	min	max	min	min
M1.4	0.3	0.7	0.45	Lower Limit	0.803	0.7	0.711	0.724	0.6	1.4
M1.6	0.35	0.8	0.55	of minor thread	0.803	0.7	0.711	0.724	0.7	1.5
M1.8	0.35	0.9	0.65	diameter	0.803	0.7	0.711	0.724	0.8	1.6
M2	0.4	1	0.75		1.003	0.9	0.889	0.902	0.8	1.7
M2.5	0.45	1.2	0.95		1.427	1.3	1.27	1.295	1.2	2
M3	0.5	1.4	1.15		1.73	1.5	1.52	1.545	1.2	2
M4	0.7	2	1.75		2.3	2	2.02	2.045	1.5	2.5
M5	0.8	2.5	2.25		2.87	2.5	2.52	2.56	2	3
M6	1	3	2.75		3.44	3	3.02	3.08	2	3.5
M8	1.25	5	4.7		4.58	4	4.02	4.095	3	5
M10	1.5	6	5.7		5.72	5	5.02	5.095	4	6
M12	1.75	8	7.64		6.86	6	6.02	6.095	4.5	8
M14	2	9	8.64		6.86	6	6.02	6.095	5.6	9
M16	2	10	9.64		9.15	8	8.025	8.115	6.4	10
M18	2.5	12	11.57		11.43	10	10.025	10.115	7.2	11
M20	2.5	14	13.57		11.43	10	10.025	10.115	8	12
M22	2.5	16	15.57		13.72	12	12.032	12.142	9	13.5
M24	3	16	15.57		13.72	12	12.032	12.142	10	15

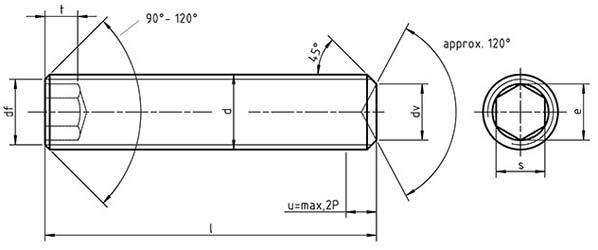

UNI 5929 Hexagon socket set screws with cup point
